Specifications


REhub MPPT Eco 12/24V DC
REhub MPPT Eco 12/24V DC
REhub MPPT 12/24 - 40A DC
REhub MPPT 12/24 - 40ADC
REhub MPPT 36 DC
REhub MPPT 48 DC
[1]Battery Voltage detection     Auto detects 12/24V    Battery Voltage detection     Auto detects 12/24V    Battery Voltage detection     Auto detects 12/24V    Battery Voltage detection     Auto detects 12/24V    Battery Voltage detection     36V       Battery Voltage detection     48V
[2]Battery System Voltage      12Vnom      Battery System Voltage      24Vnom      Battery System Voltage      12Vnom      Battery System Voltage      24Vnom      Battery System Voltage      36Vnom      Battery System Voltage      48Vnom
[3]Recommended Solar module STC Wp     500WRecommended Solar module STC Wp     1000WRecommended Solar module STC Wp     700WRecommended Solar module STC Wp     1400WRecommended Solar module STC Wp     1400WRecommended Solar module STC Wp     2500W
[4]Output Current – Continuous , Max     25A      Output Current – Continuous , Max     25A      Output Current – Continuous , Max     40A      Output Current – Continuous , Max     40A      Output Current – Continuous , Max     30A      Output Current – Continuous , Max     40A
[5]PV Open Circuit Voltage (VOC)     90VPV Open Circuit Voltage (VOC)     90VPV Open Circuit Voltage (VOC)     90VPV Open Circuit Voltage (VOC)     90VPV Open Circuit Voltage (VOC)     90VPV Open Circuit Voltage (VOC)     150V
[6]PV MPPT Voltage range    > Battery Voltage to VoC limit of chargerPV MPPT Voltage range    > Battery Voltage to VoC limit of chargerPV MPPT Voltage range    > Battery Voltage to VoC limit of chargerPV MPPT Voltage range    > Battery Voltage to VoC limit of chargerPV MPPT Voltage range    > Battery Voltage to VoC limit of chargerPV MPPT Voltage range    > Battery Voltage to VoC limit of charger
[7]Power Conversion Efficiency (typical)    91% typPower Conversion Efficiency (typical)    95% typPower Conversion Efficiency (typical)    91% typPower Conversion Efficiency (typical)    95% typPower Conversion Efficiency (typical)    95% typPower Conversion Efficiency (typical)    95% typ
[8]Full load output voltage     Same as battery voltageFull load output voltage      Same as battery voltageFull load output voltage      Same as battery voltageFull load output voltage      Same as battery voltageFull load output voltage      Same as battery voltageFull load output voltage      Same as battery voltage
[9]Float Mode Charge Voltage (Configurable)1     13.5VFloat Mode Charge Voltage (Configurable)1     27VFloat Mode Charge Voltage (Configurable)1     13.5VFloat Mode Charge Voltage (Configurable)1     27VFloat Mode Charge Voltage (Configurable)1     40.5VFloat Mode Charge Voltage (Configurable)1     54V
[10]Bulk Mode Charge Voltage    14.4VBulk Mode Charge Voltage    28.8VBulk Mode Charge Voltage    14.4VBulk Mode Charge Voltage    28.8VBulk Mode Charge Voltage    43.2VBulk Mode Charge Voltage    57.6V
[11]Battery Charging states    3 Stage for Lead acid. Configurable for other chemistries like LiFePo4Battery Charging states    3 Stage for Lead acid. Configurable for other chemistries like LiFePo4Battery Charging states    3 Stage for Lead acid. Configurable for other chemistries like LiFePo4Battery Charging states    3 Stage for Lead acid. Configurable for other chemistries like LiFePo4Battery Charging states    3 Stage for Lead acid. Configurable for other chemistries like LiFePo4Battery Charging states    3 Stage for Lead acid. Configurable for other chemistries like LiFePo4
[12]Ambient temperature range    -10°C to 60°CAmbient temperature range    -10°C to 60°CAmbient temperature range    -10°C to 60°CAmbient temperature range    -10°C to 60°CAmbient temperature range    -10°C to 60°CAmbient temperature range    -10°C to 60°C
[13]Ports    Solar +Ve, Solar -Ve. Battery +Ve, Battery -Ve, Load +Ve, Load -Ve, Data Port2Ports    Solar +Ve, Solar -Ve. Battery +Ve, Battery -Ve, Load +Ve, Load -Ve, Data Port3Ports    Solar +Ve, Solar -Ve. Battery +Ve, Battery -Ve, Load +Ve, Load -Ve, Data Port3Ports    Solar +Ve, Solar -Ve. Battery +Ve, Battery -Ve, Load +Ve, Load -Ve, Data Port4Ports    Solar +Ve, Solar -Ve. Battery +Ve, Battery -Ve, Load +Ve, Load -Ve, Data Port5Ports    Solar +Ve, Solar -Ve. Battery +Ve, Battery -Ve, Load +Ve, Load -Ve, Data Port6
[14]Display    16 X2 Backlit character LCD to display system state, Instantaneous Power and cumulative energy generated from Solar PVDisplay    16 X2 Backlit character LCD to display system state, Instantaneous Power and cumulative energy generated from Solar PVDisplay    16 X2 Backlit character LCD to display system state, Instantaneous Power and cumulative energy generated from Solar PVDisplay    16 X2 Backlit character LCD to display system state, Instantaneous Power and cumulative energy generated from Solar PVDisplay    16 X2 Backlit character LCD to display system state, Instantaneous Power and cumulative energy generated from Solar PVDisplay    16 X2 Backlit character LCD to display system state, Instantaneous Power and cumulative energy generated from Solar PV
[15]Dimension     200X120X95mm Dimension     200X120X95mm Dimension     135X270X115mmDimension     135X270X115mmDimension     135X270X115mmDimension     307X185X107mm
[16]Weight    2 KgsWeight    2 KgsWeight    3 KgsWeight    3 KgsWeight    3 KgsWeight    4 Kgs
[17]Protection      Electronically protectedProtection      Electronically protectedProtection      Electronically protectedProtection      Electronically protectedProtection      Electronically protectedProtection      Electronically protected
[18]PV Reverse and Short circuit Protection     Electronically protectedPV Reverse and Short circuit Protection     Electronically protectedPV Reverse and Short circuit Protection     Electronically protectedPV Reverse and Short circuit Protection     Electronically protectedPV Reverse and Short circuit Protection     Electronically protectedPV Reverse and Short circuit Protection     Electronically protected
[19] Over current Protection     System shutdown, recovers with a timeout Over current Protection     System shutdown, recovers with a timeout Over current Protection     System shutdown, recovers with a timeout Over current Protection     System shutdown, recovers with a timeout Over current Protection     System shutdown, recovers with a timeout Over current Protection     System shutdown, recovers with a timeout
[20]Over temperature Protection     System shutdown, recovers with a timeoutOver temperature Protection     System shutdown, recovers with a timeoutOver temperature Protection     System shutdown, recovers with a timeoutOver temperature Protection     System shutdown, recovers with a timeoutOver temperature Protection     System shutdown, recovers with a timeoutOver temperature Protection     System shutdown, recovers with a timeout
REhub ECO DC
REhub MPPT 12/24V DC
REhub 48 DC
Battery System Voltage : 12/24V – Auto detectBattery System Voltage : 12/24V – Auto detectBattery System Voltage : 36V /48V – must be selected at first time start
Rated SOLAR Output Current : 25ARated SOLAR Output Current : 40ARated DC Load Current : 30A
Rated DC Load Current : 15ARated DC Load Current : 30ARated DC Load Current : 30A
Typical Array Size :
  1. 100 – 500Wp for 12V batt
300 – 1000Wp for 24V batt
Typical Array Size :
300 – 700Wp for 12V batt
  1. 300 – 1400Wp for 24V batt
Typical Array Size :
  1. 1500 – 2000Wp for 36V batt
  2. 1500 – 2700 Wp for 48V batt
Typical Array Configuration:
  1. Single 72 Cell for both 12/24V batt output
  2. Multiple panels can be connected in series up to 90Voc
Typical Array Configuration:
  1. Multiple panels can be connected in series up to 90Voc. Connect in series-parallel when Voc of array exceeds 90V
Typical Array Configuration:
  1. Three 72 cell panels in series and multiple such strings in series-parallel arrangement
DC Load controller functions :
  1. Loads are provided Battery Voltage
  2. Low Voltage Disconnect of Loads from Batteries
  3 Usage modes ( Dusk to Dawn control of Loads or Always on control of Loads)
  4. Short circuit protection
DC Load controller functions :
  1. Low Voltage Disconnect of Loads from Batteries
  2. Usage modes ( Dusk to Dawn control of Loads or Always on control of Loads)
  3. Short circuit protection
DC Load controller functions :
  1. Low Voltage Disconnect of Loads from Batteries
  2. Usage modes ( Dusk to Dawn control of Loads or Always on control of Loads)
  3. Short circuit protection

REhub ECO DC

Key Specifications

  • Battery System Voltage : 12/24V – Auto detect

  • Rated SOLAR Output Current : 25A

  • Rated DC Load Current : 15A

  • Array Voc: 90V

  • Typical Array Size :

    • 100 – 500Wp for 12V batt

    • 300 – 1000Wp for 24V batt

  • Typical Array Configuration:

    • Single 72 Cell for both 12/24V batt output

    • Multiple panels can be connected in series up to 90Voc

  • DC Load controller functions :

    • Loads are provided Battery Voltage

    • Low Voltage Disconnect of Loads from Batteries

    • Usage modes ( Dusk to Dawn control of Loads or Always on control of Loads)

    • Short circuit protection

  • Specifications

  • User Manual

REhub MPPT 12/24V DC

Key Specifications

  • Battery System Voltage : 12/24V – Auto detect

  • Rated SOLAR Output Current : 40A

  • Rated DC Load Current : 30A

  • Array Voc: 90V

  • Typical Array Size :

    • 300 – 700Wp for 12V batt

    • 300 – 1400Wp for 24V batt

  • Typical Array Configuration:

    • Multiple panels can be connected in series up to 90Voc. Connect in series-parallel when Voc of array exceeds 90V

  • DC Load controller functions :

    • Low Voltage Disconnect of Loads from Batteries

    • Usage modes ( Dusk to Dawn control of Loads or Always on control of Loads)

    • Short circuit protection

  • Specifications

  • User Manual

REhub MPPT DC 48V 40A , 30A LC , rehub ,

REhub 48 DC

Key Specifications

  • Battery System Voltage : 36V /48V – must be selected at first time start

  • Rated SOLAR Output Current : 40A

  • Rated DC Load Current : 30A

  • Array Voc: 150V

  • Typical Array Size :

    • 1500 – 2000Wp for 36V batt

    • 1500 – 2700 Wp for 48V batt

  • Typical Array Configuration:

    • Three 72 cell panels in series and multiple such strings in series-parallel arrangement

  • DC Load controller functions :

    • Low Voltage Disconnect of Loads from Batteries

    • Usage modes ( Dusk to Dawn control of Loads or Always on control of Loads)

    • Short circuit protection

  • Specifications

  • User Manual

Solar PV for DC Loads

Solar PV for DC Loads

Going completely Direct Current (DC) for loads makes it far more efficient compared to using Loads running on Alternating Current (AC) specially when the source of power is Solar. Most of our appliances such as LED lamps, TV ultimately run on DC. Further most of electronic devices and even home appliance motors can be DC.  With Solar Photo Voltaic as a source of Power – in a DC system the following Voltage conversions happen :

Solar PV Panel at Maximum Power Point Voltage –> Battery Bus Voltage –> DC Load . Alternately and additional step of DC -DC conversion to Load Voltage if the Load Voltage is different from Battery Voltage or the Load requires a regulated Voltage output.

Whereas with AC loads the following Voltage  conversions happen :

Solar PV Panel at Maximum Power Point Voltage –> Battery Bus Voltage –> DC -AC inversion to 230VAC –> 230VAC to DC Load Voltage.

There is a loss of 10% to 20% when DC power is converted to AC power. and a loss of 5% to 20% when AC power is converted to DC power.   Going all DC is thus quite advantageous, but practical issues around the availability of home appliances that work on DC, lack of standards around DC bus Voltage, home wiring etc. prevent adoption of DC for homes.

Yet, many of Amberroot’s customers have adopted Solar DC for lighting and DC fans, and a few appliances in their homes, using Amberroot’s REhub MPPT DC to efficiently extract power from Solar panels and power the DC loads safety from the Batteries.

Others have used REhub MPPT DC in innovative applications including DC light masts deployed in Airports, Road construction etc.

REhub DCs are also being used in Industrial applications include powering Flowmeters in water supply boards, powering earthquake monitoring equipment etc.

These applications require regulated DC output – with sensitive equipment requiring Voltages within a narrow band .  Do write to us for solutions for your DC load requirements !

Short Circuit Protection

Short Circuit Protection

Load controllers protect the batteries and system from Load Short circuit.

The Load controller detects the rising current under short circuit conditions and disconnects the Loads from the batteries. After a suitable timeout (Factory configurable) the connection is re-attempted – and if the short circuit conditions persist, the Loads are disconnected again. This rapid disconnection protects the circuits from high currents, and potential burning out of the wires etc. Because the Load disconnection is using Mosfets, the action is very fast and self-correcting once the short circuit conditions are resolved.

REhub Keeps Batteries Safe

Low Voltage Disconnect

The Load Controller protects the batteries from deep discharge

The Load controllers disconnect the Loads from the batteries at a pre-set (factory configurable) Voltage.

This protects the battery from deep discharge. The Load controllers automatically re-connect the Loads at a Pre-set reconnect Voltage.

Regulated Voltage output from the Load Controller

Regulated Voltage output from the Load Controller

Some Loads require regulated Voltage input and cannot directly use the Battery Voltage range. Regulated output options are available with buck boost Load controllers that limit the Voltage to the Loads within a tight tolerance. ( E.g 12V +/- 5% from a 12V battery or 24V +/- 5% from a 24V battery) .

LOAD CONTROLLER USAGE MODES

REhub DC: Solar MPPT Chargers

DUSK to DAWN mode

In Dusk to Dawn mode REhub DC uses Solar Voltage to determine dusk or daylight availability. This Voltage is Field Select-able from REhub Menu and it is used to Switch ON and Switch OFF the Loads. For example, if the Voltage selected is say 30V and the Voltage from the Solar panel drops below 30V (Indicating Dusk), the Load is automatically switched on after a Time Out.

When the Voltage from the Solar Panels is greater than the Battery Voltage, the Load is switched off Automatically after a time out.

Application example:

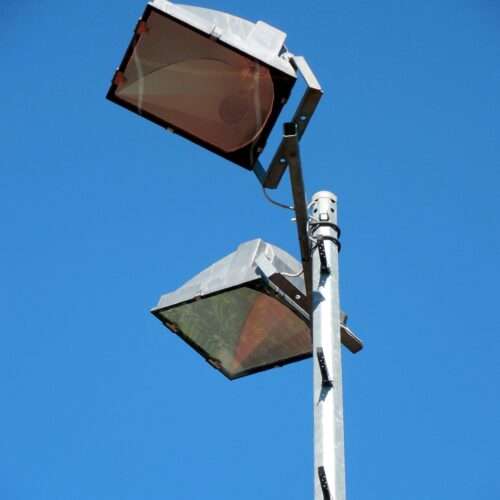

Light Masts: Using Solar energy to charge the batteries through the day and using the stored Solar energy to power the Lamps in the night in lieu of Diesel generators.

Always On Mode

Always On Mode

In Always ON mode, the Power is available to the Loads unless there is a Load Short circuit or conditions for Low Voltage Disconnect.

Application: Running DC loads that are expected to run even in daytime with Solar energy – DC light, DC air conditioners, DC fans etc.

Ordering the Solar MPPT chargers with DC Load controllers

  1. Select Solar charger based on Load requirements and battery requirements.

    • For example, if the Solar PV sizing is 600Wp and battery size is 12V, you will need REhub MPPT 40A 12/24V charger.

    • If the Battery Voltage is however 24V , and the Panel sizing is still 600Wp, then REhub MPPT ECO 25A 12/24V is sufficient.

  2. Select the Load controller based on Load current requirements

    • Let us say the Load current is 10A . In this case if the Solar charger requirement is REhub MPPT  40A 12/24V – then the option is only REhub MPPT 40A 12/24V paired with 30A Load controller.

  3. If the Loads need regulated Voltage – DC regulated Load controller is required.

    • Contact us for the selection of Regulated Load controller. Based on the Battery Voltage (Input to the Load controller) and the Output Voltage (which is the input to the Load ) , a Buck-boost regulator or a buck regulator or a boost regulator is required.

The Load controller are available paired with different REhub MPPT chargers. When done so the MPPT chargers can be used to run DC loads with Solar energy. The Mode of operation depends on the application and is a factory setting.

1. Dusk to Dawn Mode

In Dusk to Dawn mode REhub DC uses Solar Voltage (This Voltage is Field Selectable from REhub Menu) to Switch ON and Switch OFF the Loads. For example, if the Voltage selected is say 30V and the Voltage from the Solar panel drops below 30V (Indicating Dusk) , the Load is automatically switched on after a Time Out.

When the Voltage from the Solar Panels is greater than the Battery Voltage, the Load is switched off Automatically after a time out.

Application example:

Light Masts: Using Solar energy to charge the batteries through the day and using the stored Solar energy to power the Lamps in the night in lieu of Diesel generators.

2. Always On Mode

In Always ON mode, the Power is available to the Loads unless there is a Load Short circuit or conditions

for Low Voltage Disconnect.

Application:

Running DC loads that are expected to run even in daytime with Solar energy.

Specifications


REhub MPPT Eco 12/24V DC
REhub MPPT Eco 12/24V DC
REhub MPPT 12/24 - 40A DC
REhub MPPT 12/24 - 40ADC
REhub MPPT 36 DC
REhub MPPT 48 DC
[1]Battery Voltage detection     Auto detects 12/24V    Battery Voltage detection     Auto detects 12/24V    Battery Voltage detection     Auto detects 12/24V    Battery Voltage detection     Auto detects 12/24V    Battery Voltage detection     36V       Battery Voltage detection     48V
[2]Battery System Voltage      12Vnom      Battery System Voltage      24Vnom      Battery System Voltage      12Vnom      Battery System Voltage      24Vnom      Battery System Voltage      36Vnom      Battery System Voltage      48Vnom
[3]Recommended Solar module STC Wp     500WRecommended Solar module STC Wp     1000WRecommended Solar module STC Wp     700WRecommended Solar module STC Wp     1400WRecommended Solar module STC Wp     1400WRecommended Solar module STC Wp     2500W
[4]Output Current – Continuous , Max     25A      Output Current – Continuous , Max     25A      Output Current – Continuous , Max     40A      Output Current – Continuous , Max     40A      Output Current – Continuous , Max     30A      Output Current – Continuous , Max     40A
[5]PV Open Circuit Voltage (VOC)     90VPV Open Circuit Voltage (VOC)     90VPV Open Circuit Voltage (VOC)     90VPV Open Circuit Voltage (VOC)     90VPV Open Circuit Voltage (VOC)     90VPV Open Circuit Voltage (VOC)     150V
[6]PV MPPT Voltage range    > Battery Voltage to VoC limit of chargerPV MPPT Voltage range    > Battery Voltage to VoC limit of chargerPV MPPT Voltage range    > Battery Voltage to VoC limit of chargerPV MPPT Voltage range    > Battery Voltage to VoC limit of chargerPV MPPT Voltage range    > Battery Voltage to VoC limit of chargerPV MPPT Voltage range    > Battery Voltage to VoC limit of charger
[7]Power Conversion Efficiency (typical)    91% typPower Conversion Efficiency (typical)    95% typPower Conversion Efficiency (typical)    91% typPower Conversion Efficiency (typical)    95% typPower Conversion Efficiency (typical)    95% typPower Conversion Efficiency (typical)    95% typ
[8]Full load output voltage     Same as battery voltageFull load output voltage      Same as battery voltageFull load output voltage      Same as battery voltageFull load output voltage      Same as battery voltageFull load output voltage      Same as battery voltageFull load output voltage      Same as battery voltage
[9]Float Mode Charge Voltage (Configurable)1     13.5VFloat Mode Charge Voltage (Configurable)1     27VFloat Mode Charge Voltage (Configurable)1     13.5VFloat Mode Charge Voltage (Configurable)1     27VFloat Mode Charge Voltage (Configurable)1     40.5VFloat Mode Charge Voltage (Configurable)1     54V
[10]Bulk Mode Charge Voltage    14.4VBulk Mode Charge Voltage    28.8VBulk Mode Charge Voltage    14.4VBulk Mode Charge Voltage    28.8VBulk Mode Charge Voltage    43.2VBulk Mode Charge Voltage    57.6V
[11]Battery Charging states    3 Stage for Lead acid. Configurable for other chemistries like LiFePo4Battery Charging states    3 Stage for Lead acid. Configurable for other chemistries like LiFePo4Battery Charging states    3 Stage for Lead acid. Configurable for other chemistries like LiFePo4Battery Charging states    3 Stage for Lead acid. Configurable for other chemistries like LiFePo4Battery Charging states    3 Stage for Lead acid. Configurable for other chemistries like LiFePo4Battery Charging states    3 Stage for Lead acid. Configurable for other chemistries like LiFePo4
[12]Ambient temperature range    -10°C to 60°CAmbient temperature range    -10°C to 60°CAmbient temperature range    -10°C to 60°CAmbient temperature range    -10°C to 60°CAmbient temperature range    -10°C to 60°CAmbient temperature range    -10°C to 60°C
[13]Ports    Solar +Ve, Solar -Ve. Battery +Ve, Battery -Ve, Load +Ve, Load -Ve, Data Port2Ports    Solar +Ve, Solar -Ve. Battery +Ve, Battery -Ve, Load +Ve, Load -Ve, Data Port3Ports    Solar +Ve, Solar -Ve. Battery +Ve, Battery -Ve, Load +Ve, Load -Ve, Data Port3Ports    Solar +Ve, Solar -Ve. Battery +Ve, Battery -Ve, Load +Ve, Load -Ve, Data Port4Ports    Solar +Ve, Solar -Ve. Battery +Ve, Battery -Ve, Load +Ve, Load -Ve, Data Port5Ports    Solar +Ve, Solar -Ve. Battery +Ve, Battery -Ve, Load +Ve, Load -Ve, Data Port6
[14]Display    16 X2 Backlit character LCD to display system state, Instantaneous Power and cumulative energy generated from Solar PVDisplay    16 X2 Backlit character LCD to display system state, Instantaneous Power and cumulative energy generated from Solar PVDisplay    16 X2 Backlit character LCD to display system state, Instantaneous Power and cumulative energy generated from Solar PVDisplay    16 X2 Backlit character LCD to display system state, Instantaneous Power and cumulative energy generated from Solar PVDisplay    16 X2 Backlit character LCD to display system state, Instantaneous Power and cumulative energy generated from Solar PVDisplay    16 X2 Backlit character LCD to display system state, Instantaneous Power and cumulative energy generated from Solar PV
[15]Dimension     200X120X95mm Dimension     200X120X95mm Dimension     135X270X115mmDimension     135X270X115mmDimension     135X270X115mmDimension     307X185X107mm
[16]Weight    2 KgsWeight    2 KgsWeight    3 KgsWeight    3 KgsWeight    3 KgsWeight    4 Kgs
[17]Protection      Electronically protectedProtection      Electronically protectedProtection      Electronically protectedProtection      Electronically protectedProtection      Electronically protectedProtection      Electronically protected
[18]PV Reverse and Short circuit Protection     Electronically protectedPV Reverse and Short circuit Protection     Electronically protectedPV Reverse and Short circuit Protection     Electronically protectedPV Reverse and Short circuit Protection     Electronically protectedPV Reverse and Short circuit Protection     Electronically protectedPV Reverse and Short circuit Protection     Electronically protected
[19] Over current Protection     System shutdown, recovers with a timeout Over current Protection     System shutdown, recovers with a timeout Over current Protection     System shutdown, recovers with a timeout Over current Protection     System shutdown, recovers with a timeout Over current Protection     System shutdown, recovers with a timeout Over current Protection     System shutdown, recovers with a timeout
[20]Over temperature Protection     System shutdown, recovers with a timeoutOver temperature Protection     System shutdown, recovers with a timeoutOver temperature Protection     System shutdown, recovers with a timeoutOver temperature Protection     System shutdown, recovers with a timeoutOver temperature Protection     System shutdown, recovers with a timeoutOver temperature Protection     System shutdown, recovers with a timeout

Load Controller

S/No
Parameters
Load Controller
15A
Load Controller
30A
1
Switching
MOSFET Based [Solid State Switching]MOSFET Based [Solid State Switching]
2
Rated Load Current
15A30A
3
Permissible Maximum Load
110% of rated Load Current for small duration110% of rated Load Current for small duration
4
Minimum Load Current
ZeroZero
5
Voltage
Same as Battery VoltageSame as Battery Voltage
6
Indication
Load Current and Voltage. Shown in the LCD display of the paired Solar ChargerLoad Current and Voltage. Shown in the LCD display of the paired Solar Charger
7
Control function
Controlled from the Paired Solar chargerControlled from the Paired Solar charger
8
Operation Modes
Load Always ON Mode.


Dusk to Dawn Mode.
Load Always ON Mode.


Dusk to Dawn Mode.
9
Low Voltage Disconnect
Disconnects Load from Batteries at pre-set Voltage of battery: Voltage value is factory configurable. Default Value is 11.5V. (For 12Vnom. Multiply by 2 for 24V, 3 for 36V and 4 for 48V)Disconnects Load from Batteries at pre-set Voltage of battery: Voltage value is factory configurable. Default Value is 11.5V. (For 12Vnom. Multiply by 2 for 24V, 3 for 36V and 4 for 48V)
10
Load Reconnect
Load Reconnect Voltage is factory configurable. Default value is 12V. (For 12Vnom. Multiply by 2 for 24V, 3 for 36V and 4 for 48V)Load Reconnect Voltage is factory configurable. Default value is 12V. (For 12Vnom. Multiply by 2 for 24V, 3 for 36V and 4 for 48V)
11
Short Circuit Protection
Disconnects Load from Batteries and does reattempt after a time outDisconnects Load from Batteries and does reattempt after a time out
12
Cooling
Fan cooled with FAN from Solar chargerFan cooled with FAN from Solar charger
13
Ports
Load +Ve, Load -VeLoad +Ve, Load -Ve

Regulated Load Voltage Output

Buck-Boost Regulator
Buck-Boost Regulator
12V
24V
[1]Battery Voltage range12Vnom. 10V to 15V24Vnom. 20V to 30V
[2]Nominal voltage12V +/- 5% 50ppm/deg C24V +/- 3% 50ppm/deg C
[3]Continuous current15A15A
[4]Peak Current20A, 10 Seconds20A, 10 Seconds
[5]Ripple voltage200mVp-p max with steady load200mVp-p max with steady load
[6]Short circuit protectionProtectedProtected
[7]Efficiency> 87%> 87%
[8]Low voltage cutoff11V (Configurable)21V (Configurable)

Frequently Asked Questions

Still have question?

REhub DC MPPT solar charge controllers are equipped with DC load controllers .which are designed to protect the the batteries from load short circuits and overloading. So when overloading/shortcircuit happens in load, power to Load are cut off.

Yes REhub DC charger can be used for such applications with Dusk to dawn switching on of the loads

REhub DC solar charge controllers by default are manufactured without USB output but some specially customized REhub chargers have USB charging output.

Yes REhub solar charger supports that,but their wont be any AC input terminal in REhub and the Mains input to the Inverter cannot be controlled by REhub

The low voltage disconnect (LVD) function in REhub DC solar mppt controller keeps the charger from over-discharging the battery and keep it safe. ie When the a Set value of discharging battery is reached REhub DC cuts off the Power supply to load and keeps it off till the batteries are charged again and the battery voltage rises up to load reconnect voltage.

The fuse in the REhub DC solar mppt charger provides an additional protection against accidental polarity reversal at the the time of installation

ADDRESS

251/252 , 3rd Main,

3rd Cross Road,

3rd Phase, JP Nagar,

Bengaluru, Karnataka 560078

CONTACTS

Email: info@amberroot.com

Phone: +91 78993 96778

Enquire Now

    ×
